Feature:
It has few impurity, and sintered at high or super high temp. State, and glass phase concentrates in the triangle zone of the crystalline phase, which are directly bonded to each other. It has low porosity, high compress strength, strong wearing and erosion resistance, excellent thermal shock stability and anti-spalling etc.
Copper smeting coverter e-fuzed re-bonded MgO-Cr2O3 tuyere e...
High-wearing chrome-Corundum Refractory Brick

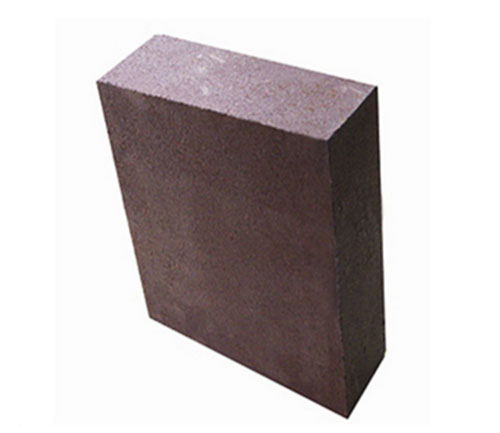

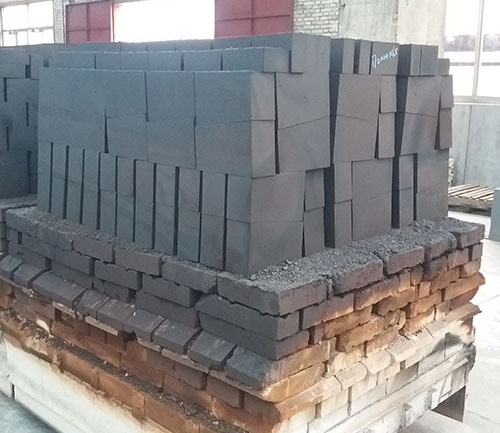

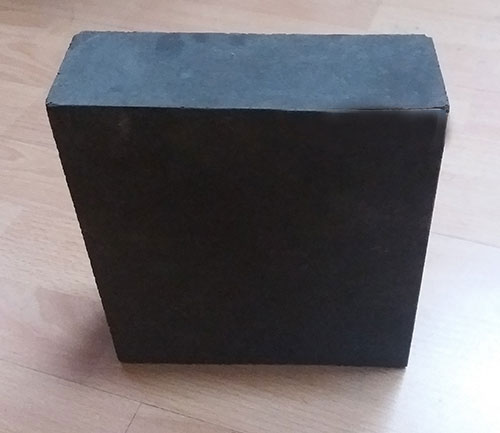

High strength wearing-resisting Si-Mullite refractory brickDirectly bonded MgO-Cr2O3 brick made of high purity or lower high purity sintered or E-fused MgO sand and Cr2O3 concentrate as raw material, through mixing, pressing, burning.
It is mainly used in working line of steel-making EAF, refining furnace, non-ferrous smelting furnace, limestone furnace, iron liquid mixed furnace.
|
Item Brand |
MgO (%)≥ |
Cr2O3 (%)≥ |
SiO2 (%)≤ |
A. P. (%) ≤ |
C. C. S. (MPa)≥ |
R. U. L @0.2MPa& T0.6 (℃) ≥ |
Thermal Expan. (1400℃) % |
|---|---|---|---|---|---|---|---|
|
Directly bonded MgO-Cr2O3 refractory brick |
|||||||
|
HXZMGE-8A |
82 |
8 |
1.5 |
17 |
45 |
1700 |
1.5 |
|
HXZMGE-8B |
76 |
8 |
2.5 |
18 |
45 |
1650 |
--- |
|
HXZMGE-12A |
75 |
12 |
1.5 |
17 |
45 |
1700 |
--- |
|
HXZMGE-12B |
70 |
12 |
2.5 |
18 |
45 |
1650 |
--- |
|
HXZMGE-16A |
70 |
16 |
1.5 |
17 |
45 |
1700 |
1.6 |
|
HXZMGE-16B |
65 |
16 |
2.5 |
18 |
40 |
1650 |
--- |
|
HXZMGE-18A |
65 |
18 |
1.5 |
17 |
45 |
1700 |
--- |
|
HXZMGE-18B |
62 |
18 |
2.5 |
18 |
40 |
1650 |
--- |
|
HXZMGE-20 |
65 |
20 |
2.0 |
19 |
40 |
1700 |
--- |
|
HXZMGE-22 |
60 |
22 |
2.0 |
19 |
40 |
1700 |
--- |
|
HXZMGE-26 |
55 |
26 |
2.0 |
20 |
40 |
1700 |
1.8 |
|
MgO-Cr2O3 refractory brick |
|||||||
|
HXMGE-8 |
60 |
8 |
--- |
21 |
30 |
1530 |
--- |
|
HXMGE-12 |
55 |
12 |
--- |
21 |
30 |
1550 |
--- |
|
HXMGE-16 |
45 |
16 |
--- |
22 |
25 |
1550 |
--- |
|
HXMGE-20 |
40 |
20 |
--- |
22 |
25 |
1550 |
--- |
*They are typical values in this table, not a basis for order.
