RH DegasserlRH Refining Furnace

August 02, 2018

With R&D of vacuum steel-making technology, from 1970s, the RD furnace starts to appear as the continuous casting arises. Because taking the technology of steel liquid is circled in the vacuum tank in the RH furnace, then reached short -time, high-efficiency, matched with the converter continuous casting etc. features,then RH furnace has been widely used in the converters.

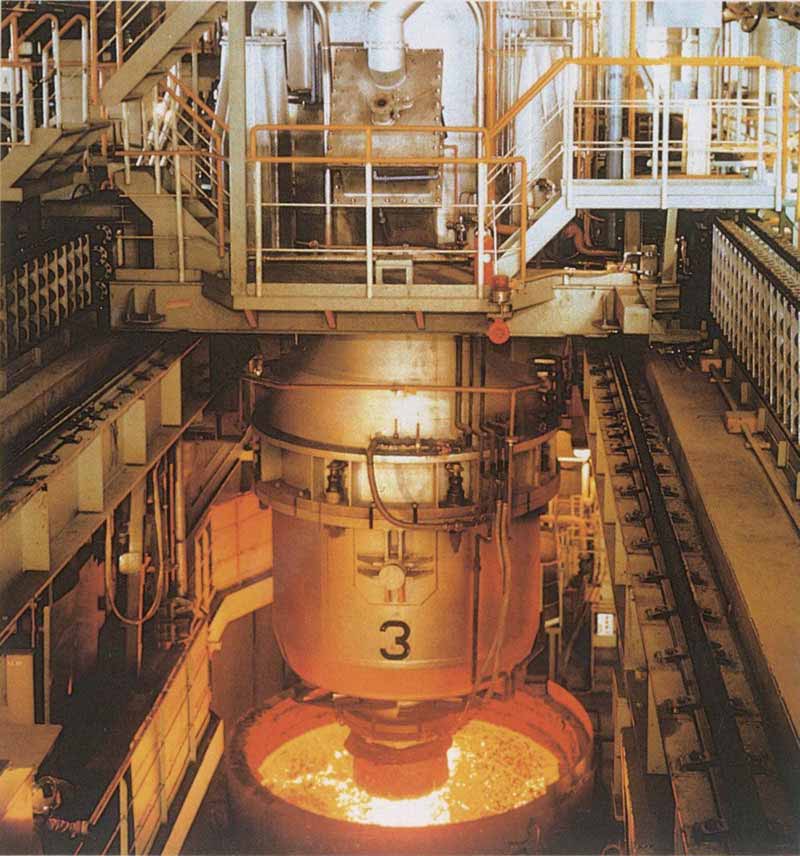

RH Refining Furnace

Through RH treated, the steel has below obvious features:

1) Alloy basically did not act with the slag,

2) Alloy is added into the steel liquid directly, high recovery efficiency,

3) Steel liquid can be Quickly and evenly mixed,alloy part can be controlled within the narrow scales

4) Lower gas content, few impurity, high purity of steel liquid,

5) Also adjust the temperature in the chemical way temperature rising with top lance, supply the fine flowing, high purity, accord with the casting temperature’s steel liquid, to good for the many times of furnace casting in the continuous casting production process.

Our company supplyment list for the special treated magnesia-chrome refractory brick for RH Degasser

  Zhengzhou Huawei Refractory Co., Ltd. (Zhengzhou Huaxu Kiln Refactory Co., Ltd.)

                               RH Degasser Use Refractory Brick Supplyment List





Item No.

Clients Name

Specifi.

Supplying Scale

Working Life

(Furnaces)

Supplying Time

1

Japan Yawata Steel Co., Ltd.

120T

Full Set

Soaking Pipe:140-160  Bottom pipe:280-320

2003-now

2

Italy Riva Steel Co., Ltd.

350T

Full Set

Soaking Pipe:170-190 Bottom pipe:350-400

2006-2010

3

Belgium Carside Steel Co., Ltd.

180T

Full Set

Soaking Pipe:140-160 Bottom pipe:350-400

2005-2009

4

Russia Tagil Steel Co., Ltd.

160T

Full Set

Soaking Pipe:150-180 Bottom pipe:450-520

2004-now

5

Russia Oskol Steel Co., Ltd.

180T

Full Set

Soaking Pipe:100-150 Bottom pipe:300-350

2005-now

6

Russia NLMK CO., Ltd.

170

Full Set

Soaking Pipe:120-150 Bottom pipe:360-450

2004-now

7

Russia MMK Steel Co., Ltd.

350T 300T

Full Set

Soaking Pipe:150-200 Bottom pipe:150-200

2004-now

8

AK Middle Town Steel Co., Ltd.

225T

Full Set

Soaking Pipe:190-200 Bottom pipe:380-400

2010-now

9

AK Steel Ashland

180T

Full Set

Soaking Pipe:150-160 Bottom pipe:300-320

2011-now

......

......

......

......

......

......
